Technical data sheet

[ Model: HH-C-5Kn ]

General description

The servo press is a device driven by AC servo motor, which changes the rotary force to the vertical direction through high-precision ball screw, controls and manages the pressure by the pressure sensor loaded on the front of the driving part, controls and manages the speed position by the encoder, and applies pressure to the working object at the same time, so as to achieve the processing purpose.

It can control the pressure/stop position/drive speed/stop time at any time . It can realize the closed-loop control of the whole process of pressing force and pressing depth in the pressure assembly operation; The touch screen with friendly human-computer interface is intuitive and easy to operate. It is installed with a safety light curtain. If a hand reaches into the installation area during the installation process, the indenter will stop in situ to ensure safe operation.

If it is necessary to add additional functional configurations and size changes or specify other brand parts, the price will be calculated separately. Once the production is completed, the goods will not be returned.

SPECIFICATIONS: HH-C-5KN

PRESSURE ACCURACY CLASS	Level 1
MAXIMUM PRESSURE	5kN
PRESSURE RANGE	50N-5kN
NUMBER OF SAMPLES	1000 times per second
MAXIMUM STROKE	150mm(Customizable)
CLOSED HEIGHT	300mm
THROAT DEPTH	120mm
DISPLACEMENT RESOLUTION	0.001mm
POSITIONING ACCURACY	±0.01mm
PRESS SPEED	0.01-35mm/s
NO-LOAD SPEED	125mm/s
THE MINIMUM SPEED CAN BE SET TO	0.01mm/s
HOLDING TIME	0.1-150s
THE MINIMUM PRESSURE HOLDING TIME CAN BE SET TO	0.1s
EQUIPMENT POWER	750W
SUPPLY VOLTAGE	220V
OVERALL DIMENSION	530×600×2200mm
WORKING TABLE SIZE	400mm(left and right)、240mm(front and rear)
THE WEIGHT IS ABOUT	350kg
SIZE AND INNER DIAMETER OF INDENTER	Φ 20mm, 25mm deep

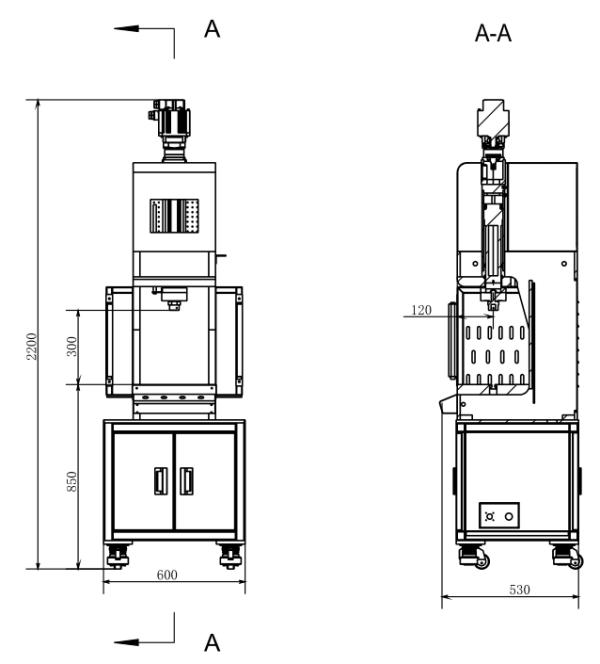

 Drawing & Dimension

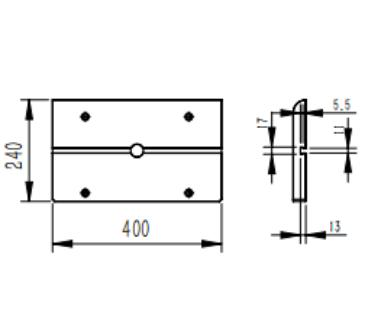

Dimensions of T-shaped groove on worktable

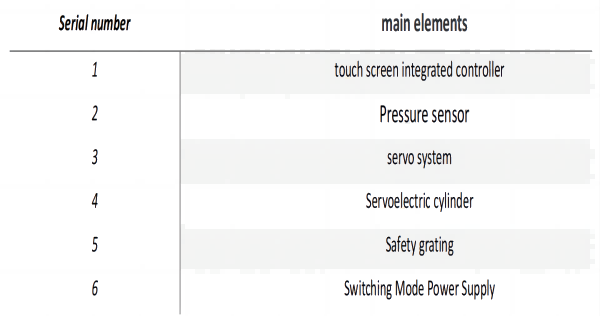

 Main system configuration

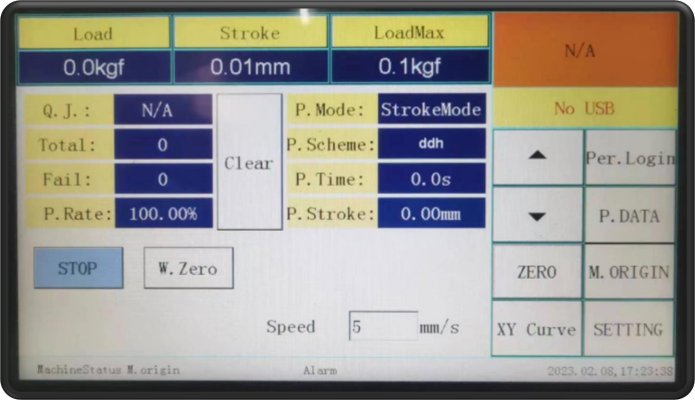

Main interface of system software

The main interface includes interface jump button, data display and manual operation functions.               Management: including the backup, shutdown and login method selection of the jump interface scheme. Settings: including the jump interface unit and system settings.

Zero: Clear the load indication data.

View: language setting and graphical interface selection.

Help: version information, maintenance cycle setting.

Test plan: edit the press mounting method.

Redo a batch: clear the current press mounting data.

Export data: export the original data of the current press mounting data.

Online: the board establishes communication with the program.

Force: real-time force monitoring.

Displacement: the stop position of the real-time press.

Maximum force: the maximum force generated in the process of pressing.

Manual control: automatic continuous descending and ascending, inching ascending and descending; Test

the initial pressure.

1.    High equipment accuracy: repetitive positioning accuracy ± 0.01mm, pressure accuracy 0.5% FS

2.    The software is self-developed and easy to maintain.

3.    Various pressing modes: optional pressure control and position control.

4.    The system adopts a touch screen integrated controller, which can edit and save 10 sets of formula program schemes, display the current displacement-pressure curve in real time, and record 50 pieces of press-fitting  result data online. After  more than 50  pieces of data are stored, the old data will  be automatically  overwritten  (note:  the  data  will  be  automatically  cleared  after  power  failure).  The equipment can expand and insert an external USB flash disk (within 8G, FA32 format) to save historical data. The data format is xx.xlsx

5.    The software has the envelope function, which can set the product load range or displacement range according to the requirements. If the real-time data is not within the range, the equipment will alarm automatically.

6.    The equipment is equipped with safety grating to ensure the safety of operators.

7.    Realize accurate displacement and pressure control without hard limit and relying on precision tooling.

8.    Online assembly quality management technology can detect defective products in real time.

9.    According to the specific product requirements, specify the optimal pressing process.

10.  Specific, complete and accurate operation process recording and analysis functions.

11.  It can realize multi-purpose, flexible wiring and remote equipment management.

12.  Multiple data formats are exported, EXCEL, WORD, and data can be easily imported into SPC and other data analysis systems.

13.  Self-diagnosis and energy failure: in case of equipment failure, the servo press-fitting function displays error information and prompts for solutions, which is convenient to find and solve the problem quickly.

14.  Multi-functional  I/O  communication  interface: through this  interface,  communication with  external devices can be realized, which is convenient for full automation integration.

15.  The software sets  multiple  permission setting functions, such as administrator, operator and other permissions.
