Structure and working principle of servo pressure installation
Precision press assembly equipment integrated solution
1.Servo pressure installed in our daily work and life is widely used, although we will also how to operate the servo pressure installed, but its working principle and we do not deeply understand the structure, so that we cannot easily operate the equipment, so we will introduce in detail the servo pressure installed structure and working principle

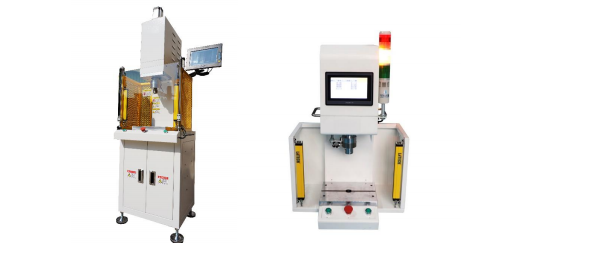

Servo pressure installed by servo press system and host two parts, the host adopts the import servo electric cylinder and screw supporting control part, import servo motor drive host pressure, servo pressure installed is no pressure, its working principle is with servo motor drive precision ball screw precision pressure assembly, in pressure assembly operation, can realize the pressure and deep process of closed loop control.
2. How the press machinery works
The servo pressure installation is driven by two main motors, and the working slider drives the working slider up and down. After the input start signal, the working slider rebounds under the force, the motor starts, and reverses the working slider back to the predetermined travel position, and then automatically enters the braking state.
