Small knowledge of belt water mill?

Small knowledge of belt water mill?

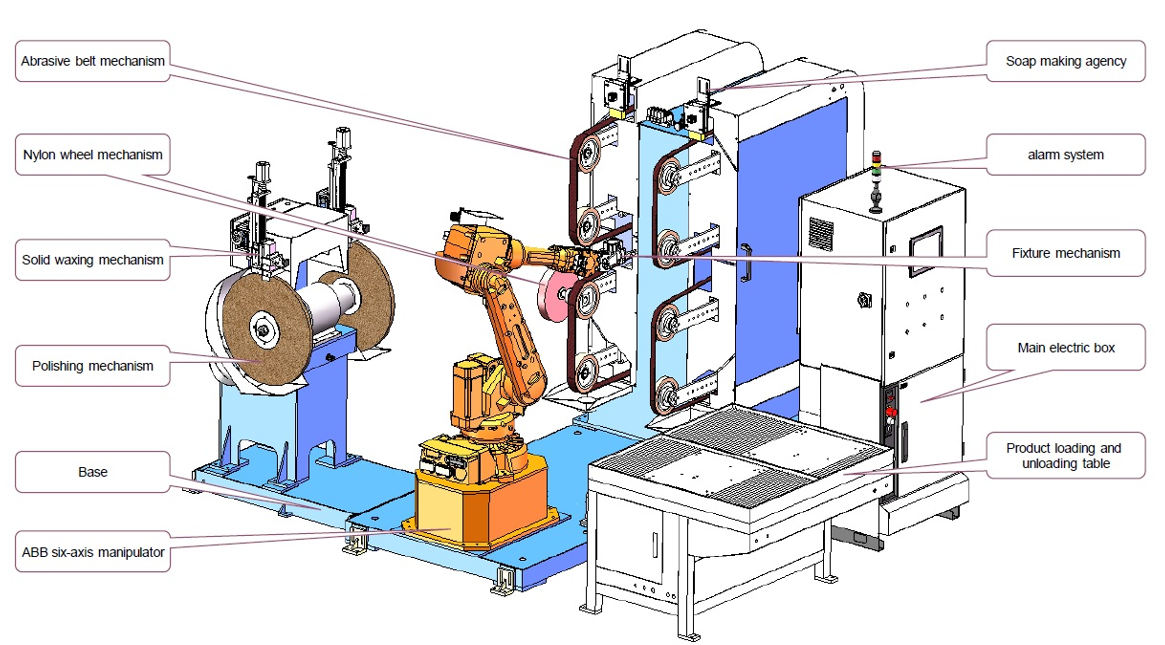

Providing a stainless steel elbow cylindrical polishing system based on an industrial manipulator, including an industrial manipulator, a clamping mechanism, a feeding car and a cylindrical polishing mechanism; the clamping mechanism is installed at the end of the industrial manipulator; the clamping mechanism Including a mechanical support unit and a clamping action unit; the feeding car includes a profile frame, four conveying guide rails, four conveying sliders, a storage board and a feeding conveying unit; the feeding conveying unit is installed on the profile frame. The top middle position is located between the two conveying guide rails; the outer circle polishing mechanism includes a polishing frame and a moving unit installed on the polishing frame. The stainless steel elbow outer circle polishing system described in the patented technology of the present invention can completely realize the automatic polishing of stainless steel elbow, can completely replace manual operation, significantly improve work efficiency, reduce labor costs, and improve the automation level of enterprises.

Application:
As a standard machine independently developed by our company, the abrasive belt water-grinding machine has 6 national patents.
According to the product width and surface treatment process, the abrasive belt water polishing machine has two processing widths of 150mm and 400mm. The number of heads can be configured from 2 to 8 heads. The width & heads could also be customized according to the exact requirement. The key features are stable operation, environmental protection, high safety performance, a wide range of processed products, and high-quality surface treatment.
Sanding, grinding and wire-drawing for panel products. The abrasive belt water-grinding machine is designed with a spray device, which can cool the panel during the grinding processing, and effectively prevent dust pollution, which plays a role in environmental protection.
For small products, it can also customize a jig, put the product inside jig and hold it, and then transport it on the conveyor belt for processing.

The belt swing function makes the touching between the product and the belt more uniform and achieves a higher-quality finish.
The worktable can also adopt a circulating conveying type to process the products back and forth, which is easy to operate, and also effectively improves work efficiency and cost saving.
Aerospace, vessel, automobile, medical, electronic, 3C, construction, photoelectric, sanitary ware, catering, Jewelry;

Finishes: Mirror, straight, oblique, messy, wavy…
Wire drawing:
Metal wire drawing is a very common decoration method in life. It can be made into straight lines, threads, corrugations, random patterns and spiral patterns. This surface treatment gives people the characteristics of good hand feeling, fine luster and strong wear resistance.

Mirror finish:
The mirror surface treatment of stainless steel is simply to polish the surface of stainless steel. Through seven process steps of rough grinding, secondary rough grinding, semi-fine grinding, fine grinding, secondary fine grinding, semi-gloss, and gloss, different abrasive belts are used. , hemp wheel and cloth wheel are repeatedly polished, and finally the mirror effect of ordinary polishing, ordinary 6K, fine grinding 8K, and super fine grinding 10K is obtained.
