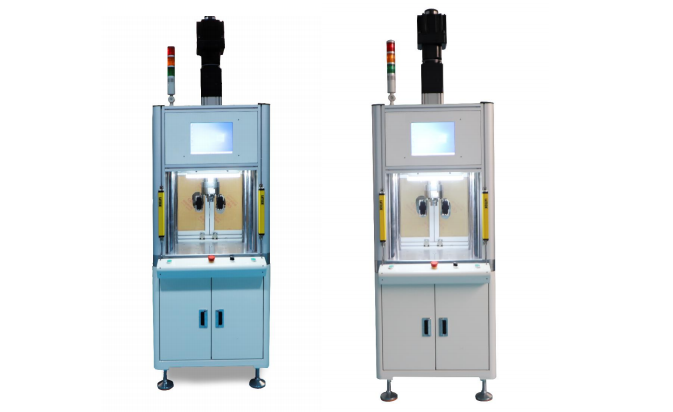

Servo press is widely used in our daily work and life, although we will also install how to operate the servo press, but we do not understand its working principle and structure so that we cannot easily operate the equipment, so we will introduce it in detail The structure and working principle of the installed servo pressure. The installed capacity of the servo press is completely different from the traditional press, which belongs to a brand-new concept, not only from the concept, but also from the technical point of view. It is a traditional combination of mechanical technology and high-tech to realize digital control stamping equipment.
The servo pressurized installation structure has desktop C type, bow type, single column type, double column type and four column type. The structure of the table is simple and reliable, the bearing capacity is strong, and the load does not deform. It is a stable bearing structure with a wide range of applications. The main system equipment is composed of servo motor, position sensor, motor controller, reducer, drive, brake, touch screen, working mechanism, auxiliary mechanism, programmable
controllers and other components. Simply put, the installed servo pressure is composed of hydraulic system and main engine. The main engine adopts imported servo electric cylinder and screw supporting control part. The imported servo motor drives the main engine to pressurize. The installation of servo pressurization is different from that of ordinary pressure installation. Pressure, its working principle is to use a servo motor to drive a high-precision ball screw pressure assembly, in the pressure assembly
operation, closed-loop control of pressure and deep processes can be achieved.
1. The structure of servo press-fitting equipment. The servo pressure device is composed of a servo pressure system and a host. This
The main engine adopts the feed servo electric cylinder and the screw matching control part, and the imported servo motor drives the main engine to generate pressure. The difference between a servo press and a normal press is that it does not use air pressure. Its working principle is to use a servo motor to drive a high-precision ball screw for pressure components. In pressure assembly operations,. Full closed-loop control can realize the process of pressure and depth.
2. The working principle of the servo press-fitting equipment. The servo pressure device is driven by two main motors, and the main screw moves the working slider up and down. After the start signal is input, the motor moves the working slider to move up and down through the small gear and the large gear. When the motor reaches the speed required by the predetermined pressure, the energy stored in the large gear is used to work, thus forming the forging die workpiece. After the big gear releases energy, the working slider returns under force, and the motor starts to drive the big gear to reverse, so that the working slider quickly returns to the predetermined driving position.
