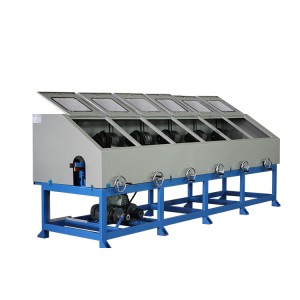

Fully automatic square tube polishing machine

Short Description:

Brand: HaoHan

Model: HH-SP01.01

Power supply voltage: 380V-50HZ

Total power: 35kw

Main motor: 5.5kw

Air pressure: 0.55Mpa

Consumables: hemp wheel, cloth wheel, nylon wheel (Adjustable)

Consumable size: 250X32mm inner hole

Spindle speed: 2800r/min

Conveying speed: 5-10 meters (adjustable)

Length: 500-6000mm

Caliber: 10-100mm

Heads: 4-32*heads (customizable)

Dimension: subject to actual installation


Product Detail

Product Tags

Application

Fully automatic square tube polishing machine, each group is equipped with 4 polishing wheels, which can simultaneously finish the mirror polishing treatment of the four sides of the square tube on the top, bottom, left and right sides at the same time through the traction wheel. From feeding to discharging, all the work is completed automatically. At the same time, the whole machine is equipped with a dust cover to achieve zero emission of dust and environmental protection.

The equipment is completely independently developed and has 5 national patents. It uses multiple sets of polishing heads, and different combinations of polishing wheels can be selected according to actual needs to achieve different polishing effects. Throw away the burrs, polish the middle with a cloth wheel, and polish the end with a nylon wheel. These tasks can all be adjusted on site to a customer satisfaction result.

The equipment has a high degree of automation, which can save a lot of labor costs; at the same time, it has high production efficiency and can greatly increase the production capacity of the enterprise.

Benefits:

• Fully automatic including loading and unloading

• Can process four sides at the same time

• The swing function is evenly polished

Finishes:

• Mirror

Objective:

• Square tube

Material

• All

Customization

• Acceptable (4-64heads)

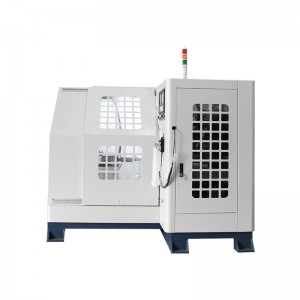

Fully automatic square tube polishing machine (4)

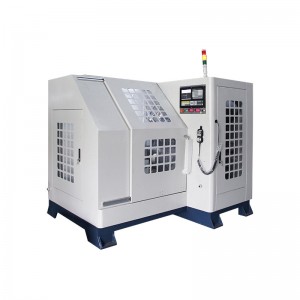

Fully automatic square tube polishing machine (3)

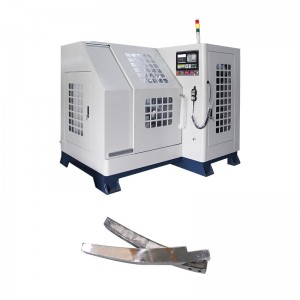

Fully automatic square tube polishing machine (3)

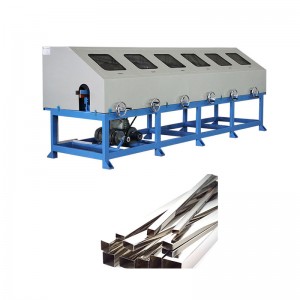

Fully automatic square tube polishing machine (5)
Pipe (1)
Pipe (2)
