China OEM Power Press Suppliers - Servo Presser and Major parts of Oiling machine – HaoHan Detail:

KST-660 servo quantitative valve main components: adjustment seat, slide rail, servo motor, quantitative oil chamber, precision quantitative piston, lower valve body, cylinder piston, and oil pipe.

Situation	0.05cc-20cc
Precision	± 1% -2%
Allowance	NLGI # 00- # 3
Applicable pressure	6-120kg / cm2
Air pressure demand	0.4 ~ 0.6MPa
Weight	3kg
Size	45 * 90 * 380mm
Work ambient temperature	-10 °C ~ + 50 °C

1. The product is quantitatively accurate.

2. The control interface directly sets the amount of oil to exempt the manual adjustment step.

3. The instructions can be stored directly and the control interface wiring.

4. Can set the spitting oil to spit evenly.

5. With a resilience. Eliminate leakage, overflow, brushed and other phenomena.

6. Can be equipped with replenishment, spit, confirm the inspection of the inductor, have a retentate effect.

7. According to the actual situation，it could be matched by multiple groups of fixed hole positions.

8. Can be applied to NLGI # 00- # 3 grease, semi-solid, high viscosity, liquid, and the like.

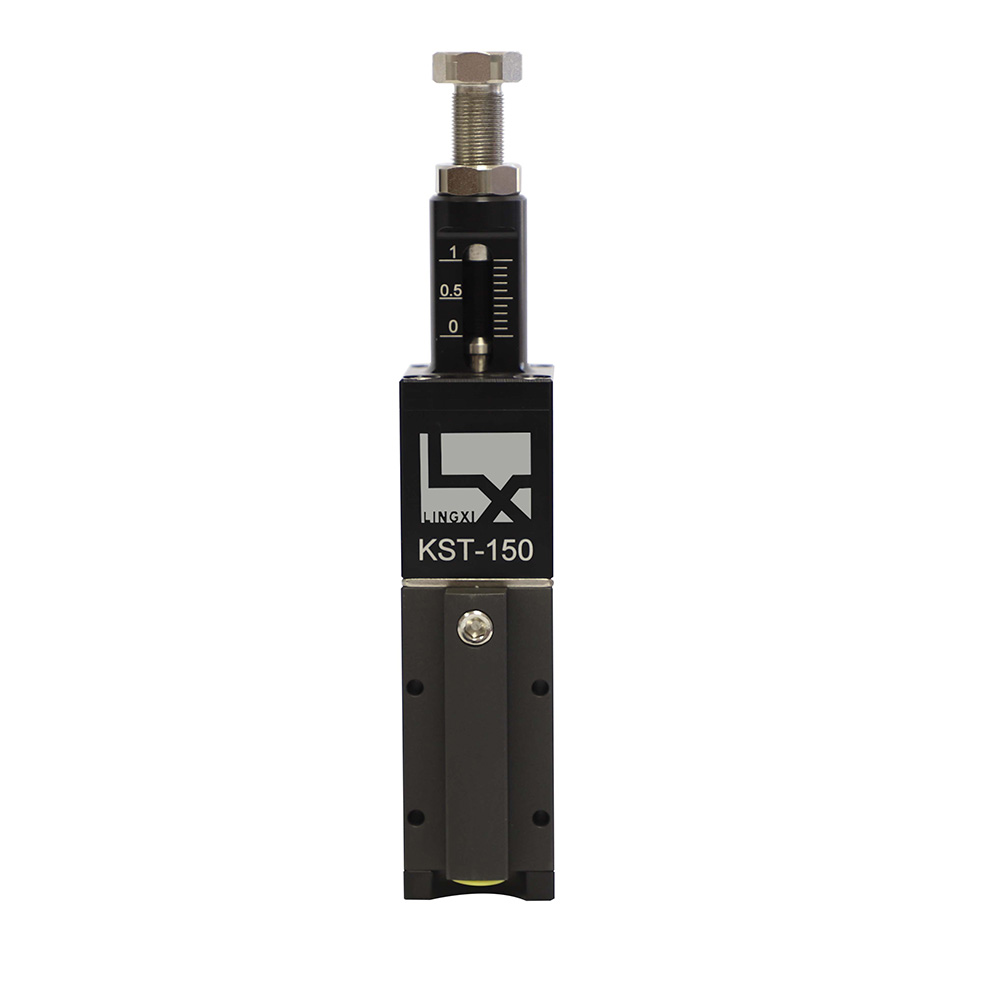

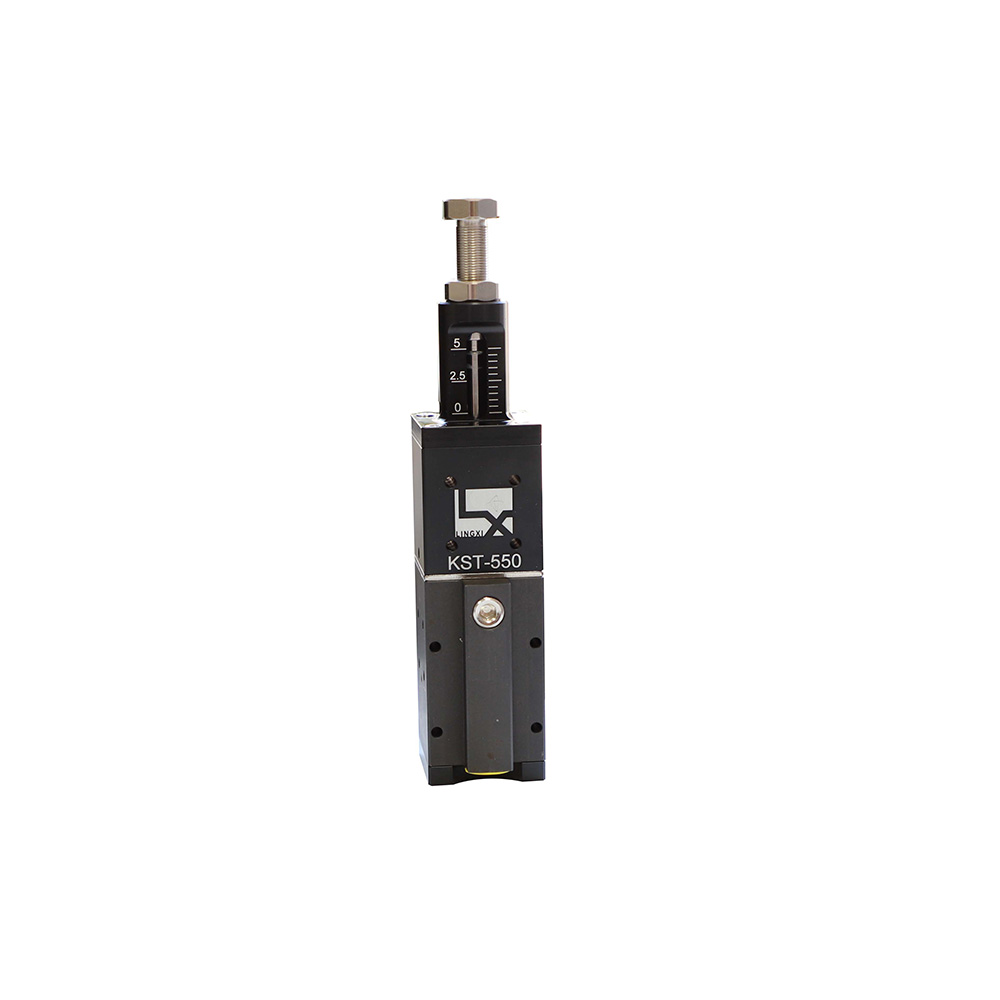

The main components of the KST quantitative valve: adjust the seat, quantitatively reservoir, precisely quantitative piston, lower valve body, cylinder piston, and oil pipe.

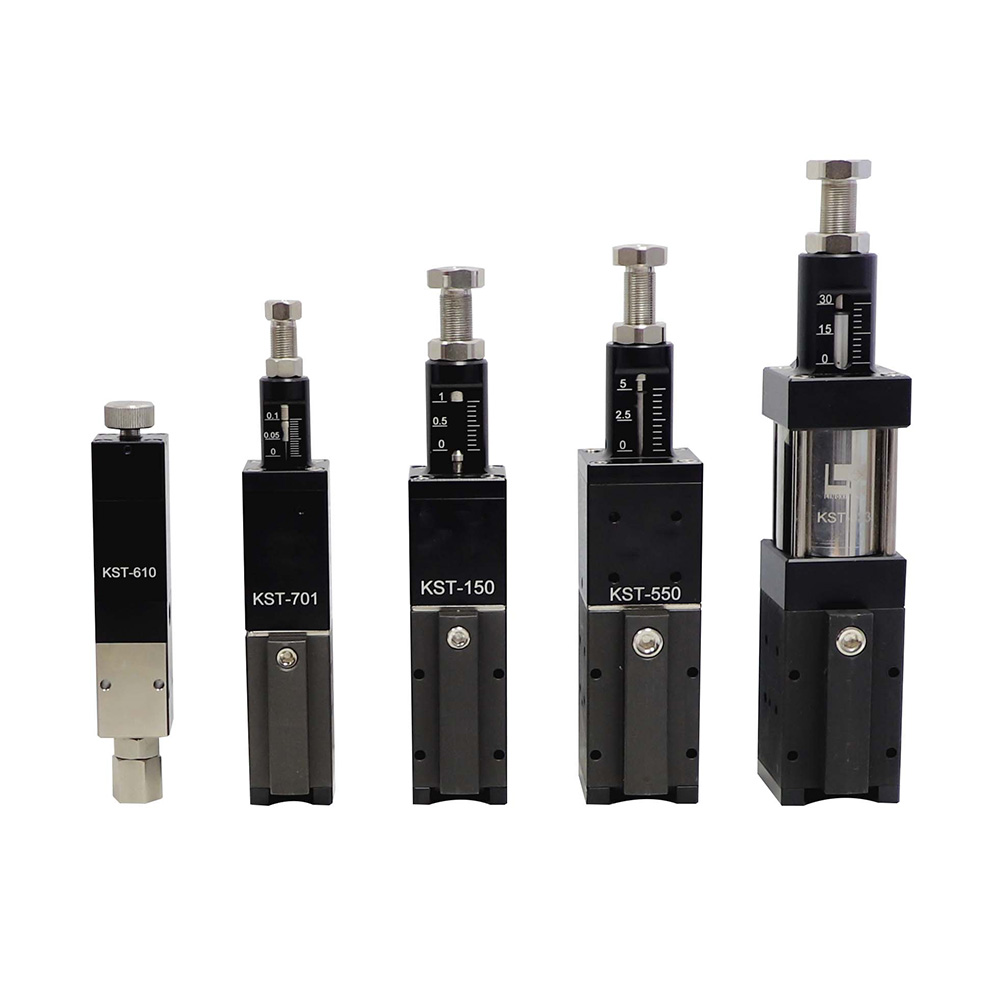

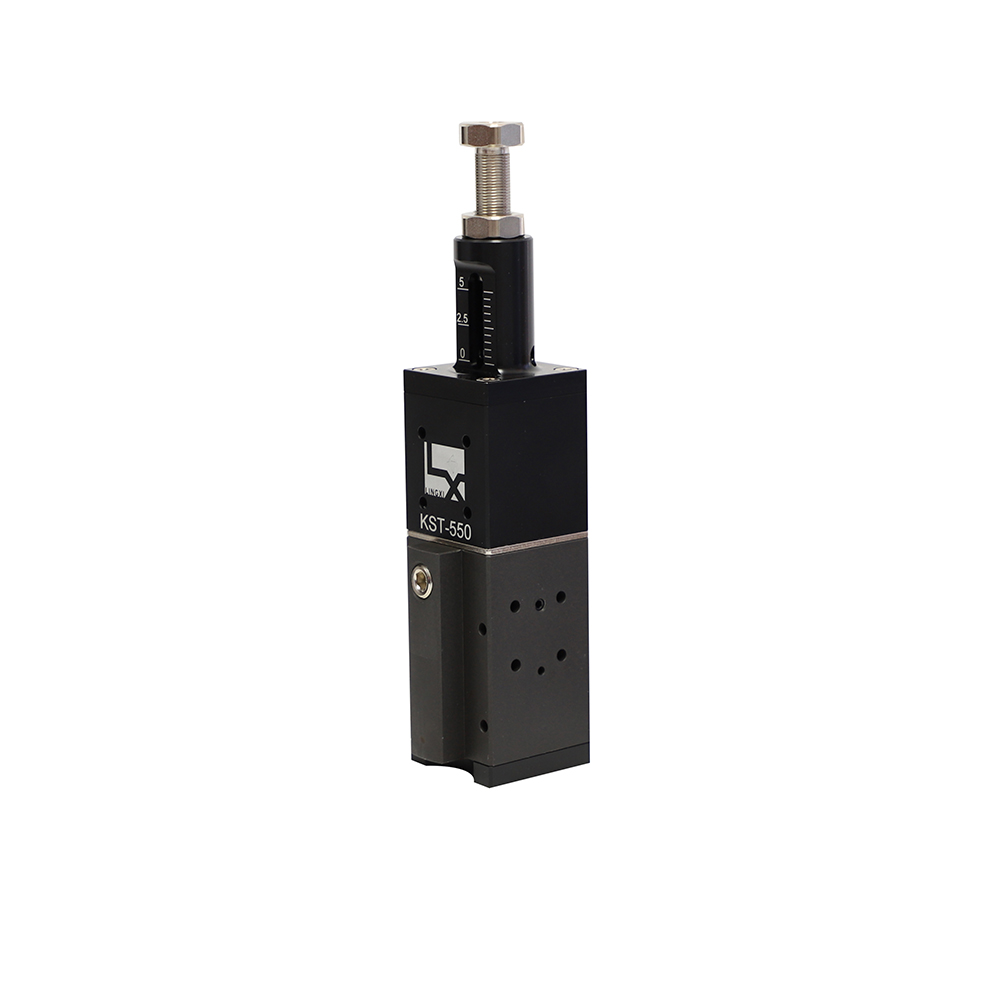

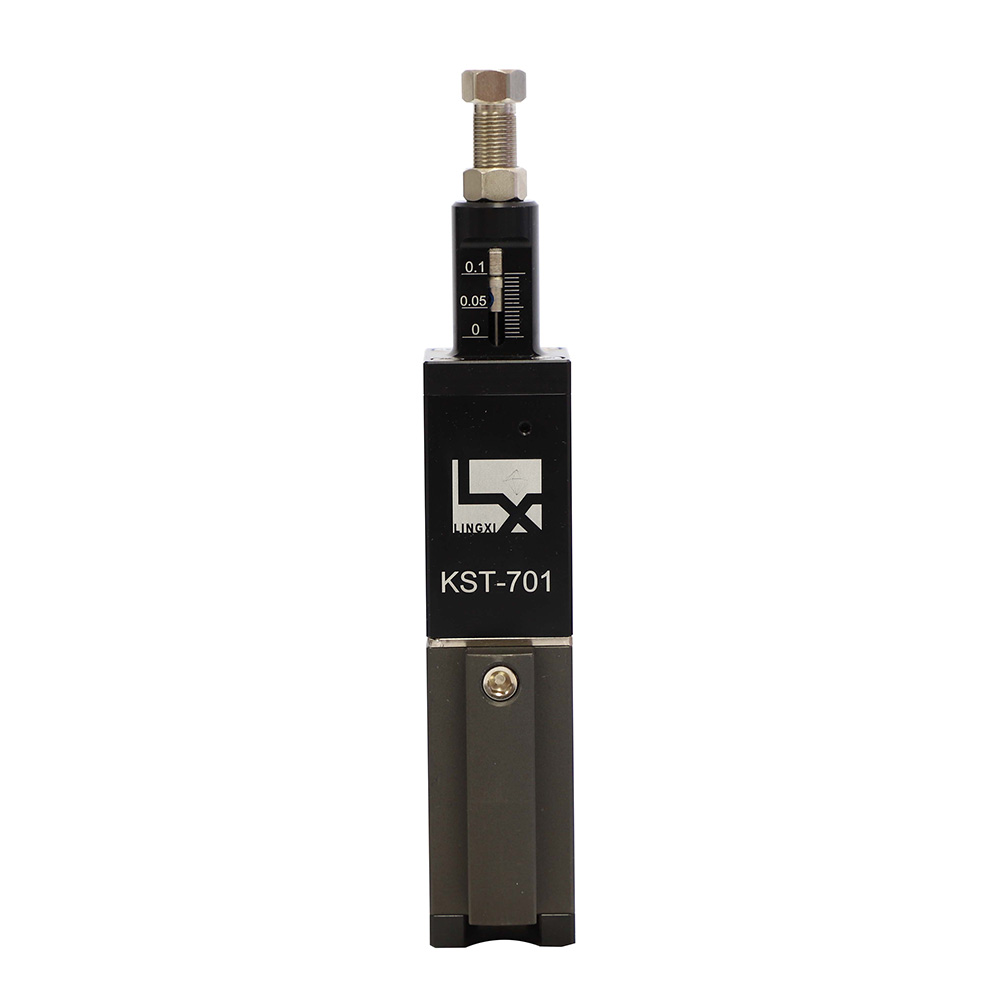

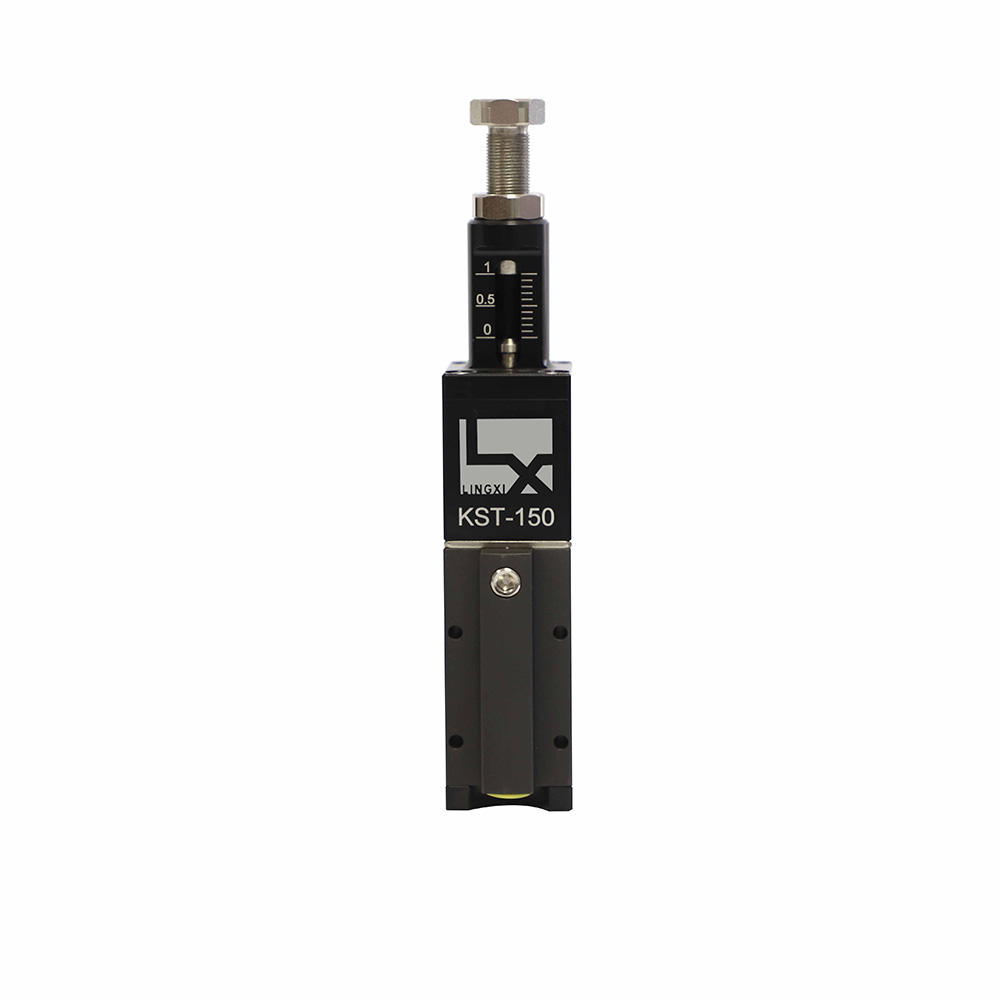

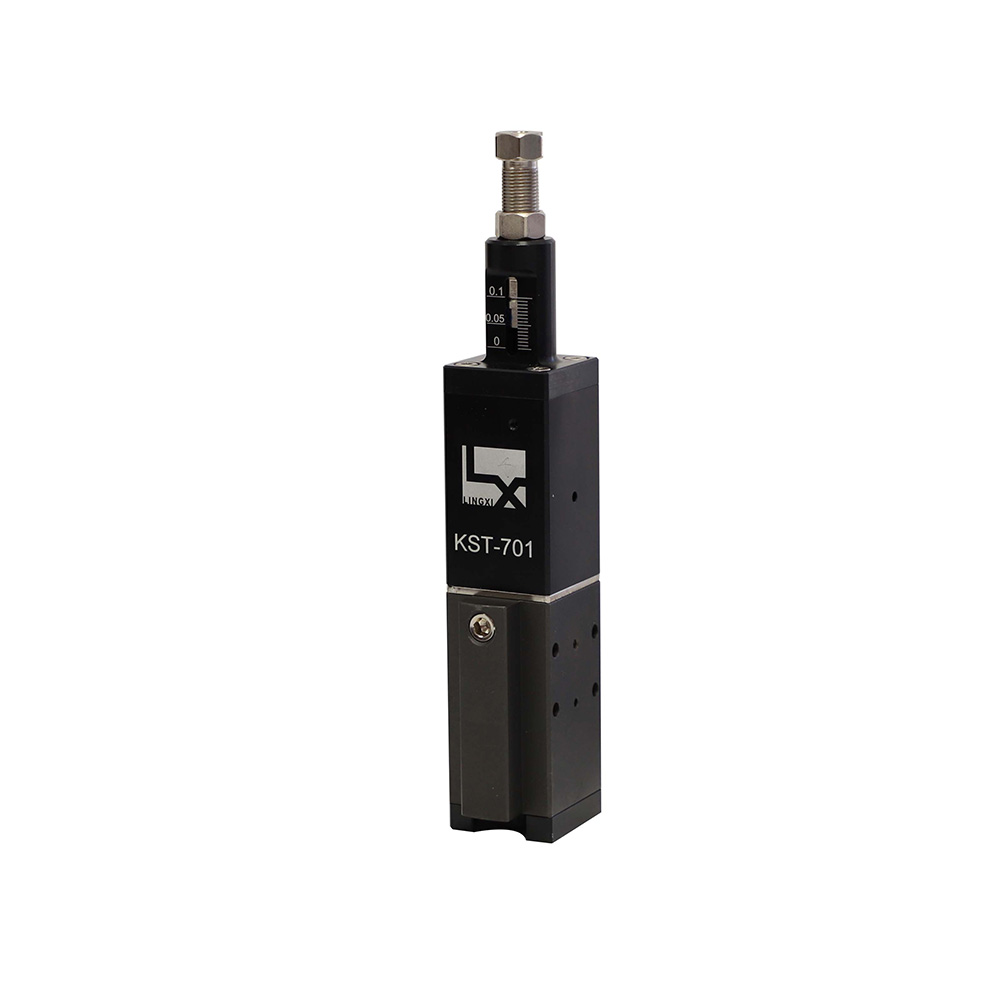

model	KST-701	KST-150	KST-550	KST-033
Time	0.007cc-0.1cc	0.05cc-1cc	0.5cc-5cc	3cc-30cc
Precision	±1%-3%	±1%-2%
Allowance	NLGI#00-#3
Suitable pressure	6-50kg/cm²	6-100kg/cm²
Air pressure demand	0.4~0.6MPA
weight	0.5kg	1.3kg	1.6kg	2.3kg
Dimensions mm	2828108	3846225	4556230	4858265
working environment	-10-+50℃

1. The product is quantified, and there are a variety of styles to choose from.

2. With a resilience. Eliminate leakage, overflow, brushed and other phenomena.

3. Can be equipped with a replenishment, spit oil confirmation of the indicator with a stained effect.

4. According to the actual situation，it could be matched by multiple groups of fixed hole positions.

5. Can be applied to NLGI # 00- # 3 fat, semi-solid, high viscosity, liquid, and the like.

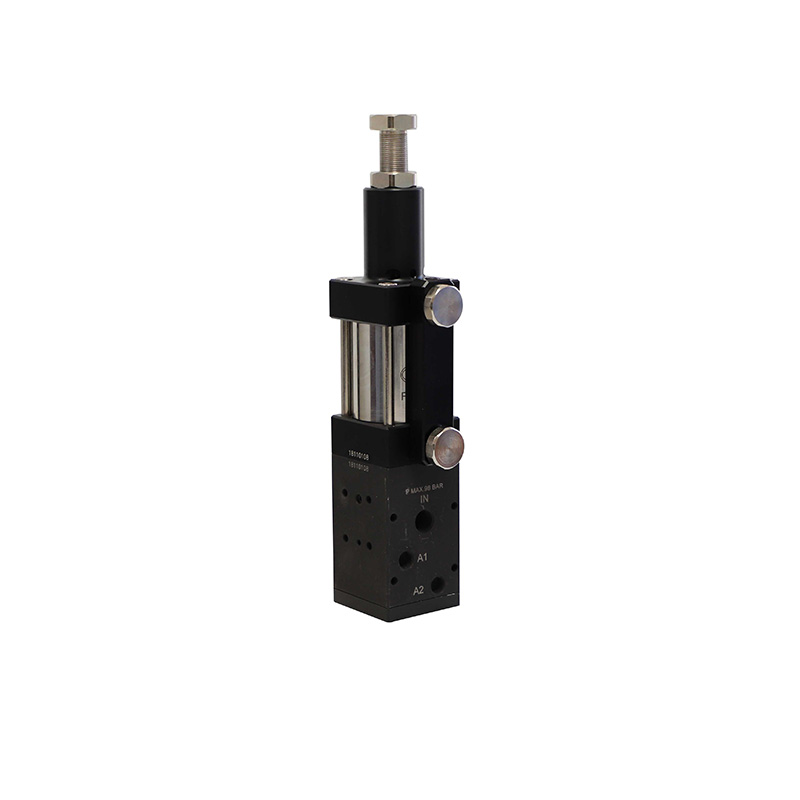

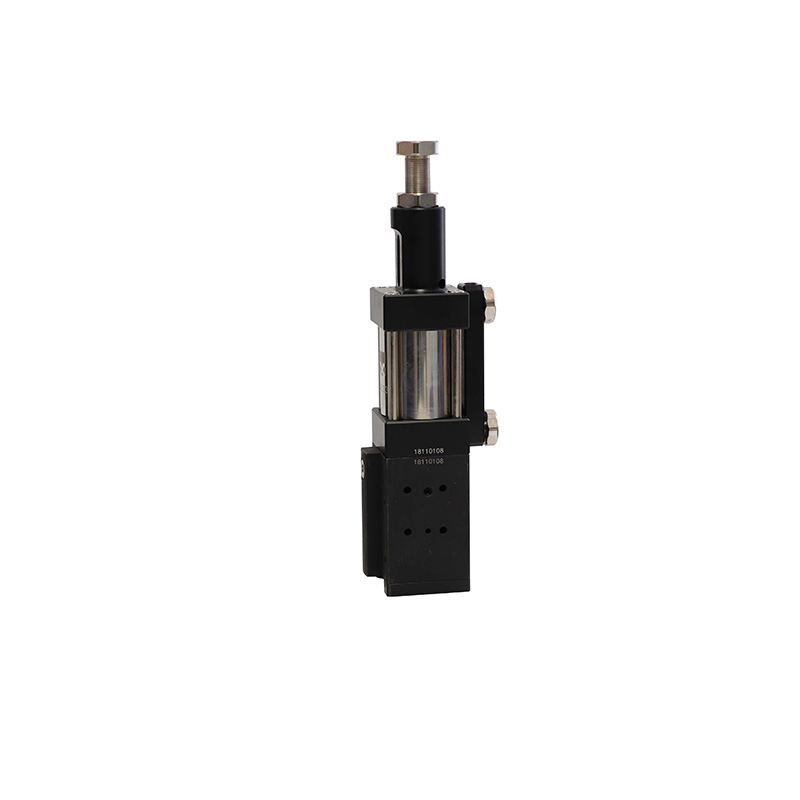

KST-033 (4)

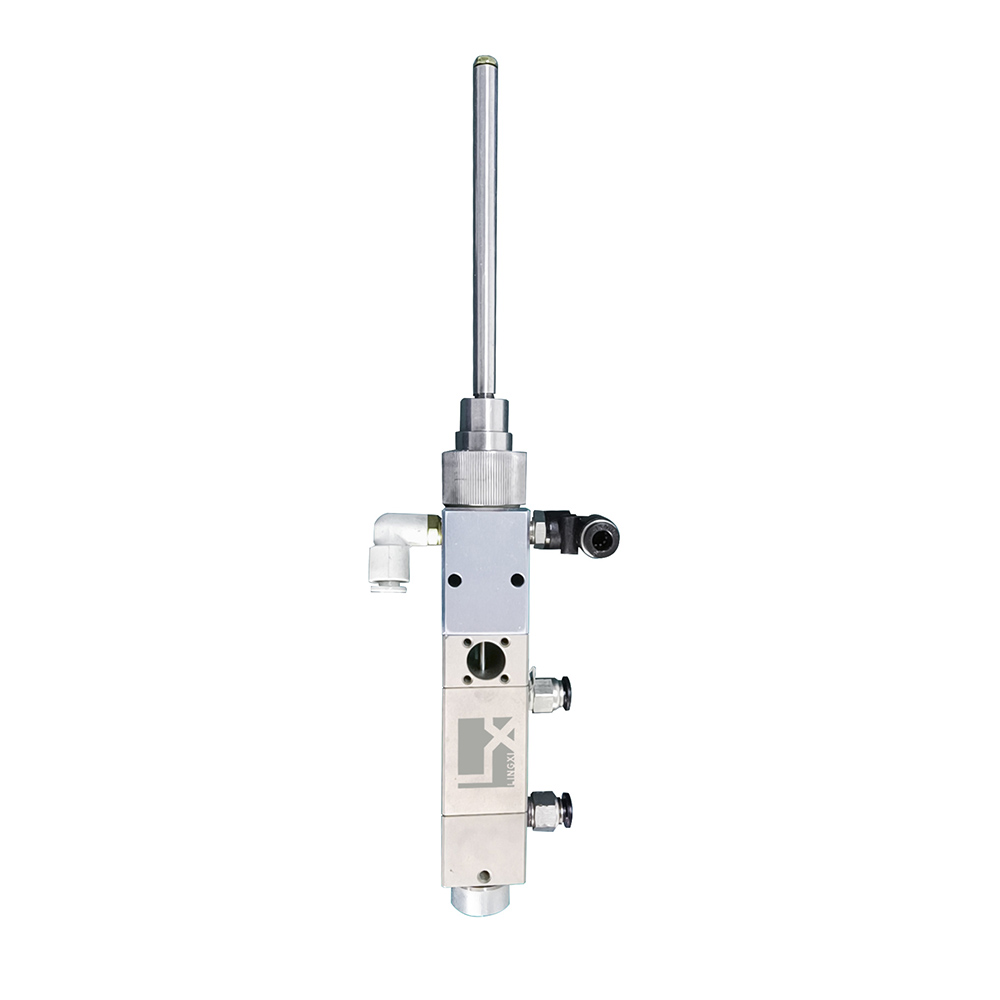

KST-810P Horizontal spray valve

Advantage:

1. Horizontal, direct injection to change the nozzle.

2. Cross spray plus long rod ≤1000mm length can be arbitrarily.

Application field:

NLGI # 00- # 3 butter, semi-solid, high viscosity, liquid.

model	KST-810P
Time	time control
Precision	± 10%
Suitable oil	NLGI # 00- # 3 fat
working environment	-10 ° C – + 50 ° C
Suitable pressure	6-120kg / cm2
Air pressure demand	0.4-0.6MPa
weight	0.5kg
Size	30mm * 30mm * 150mm

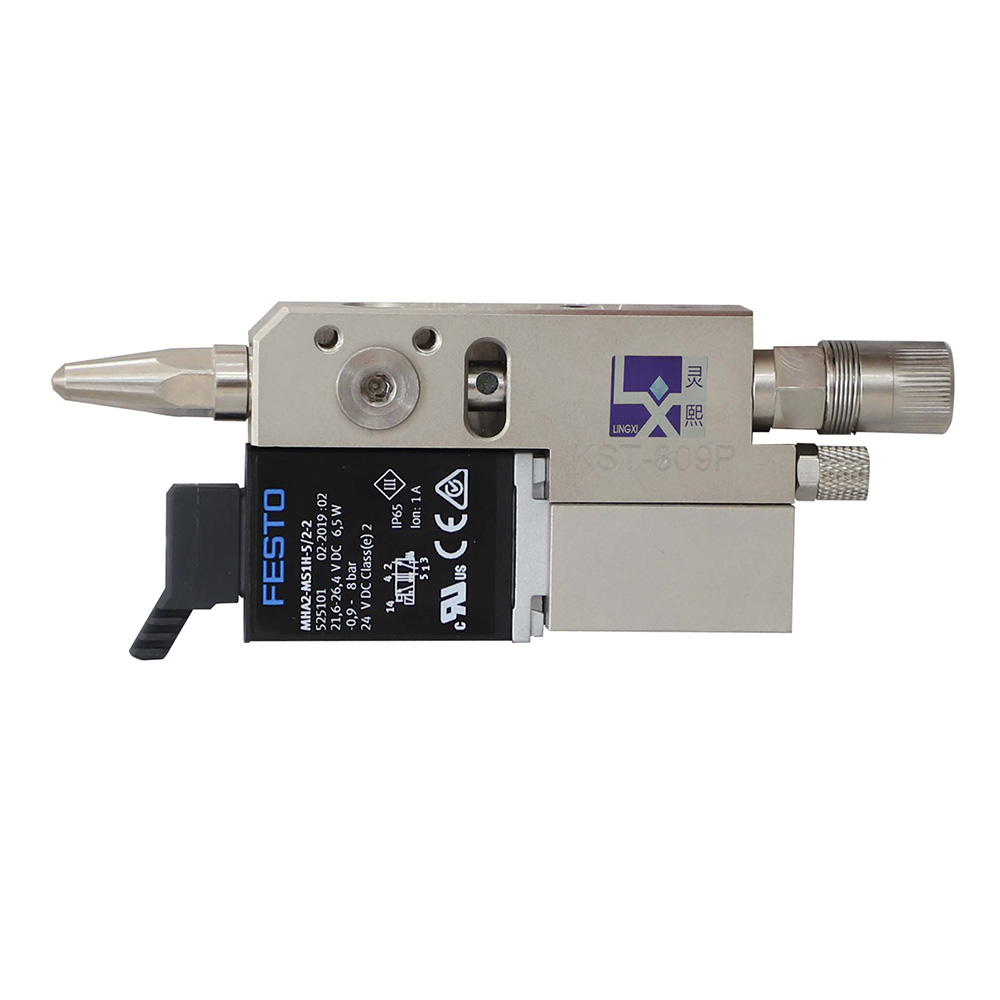

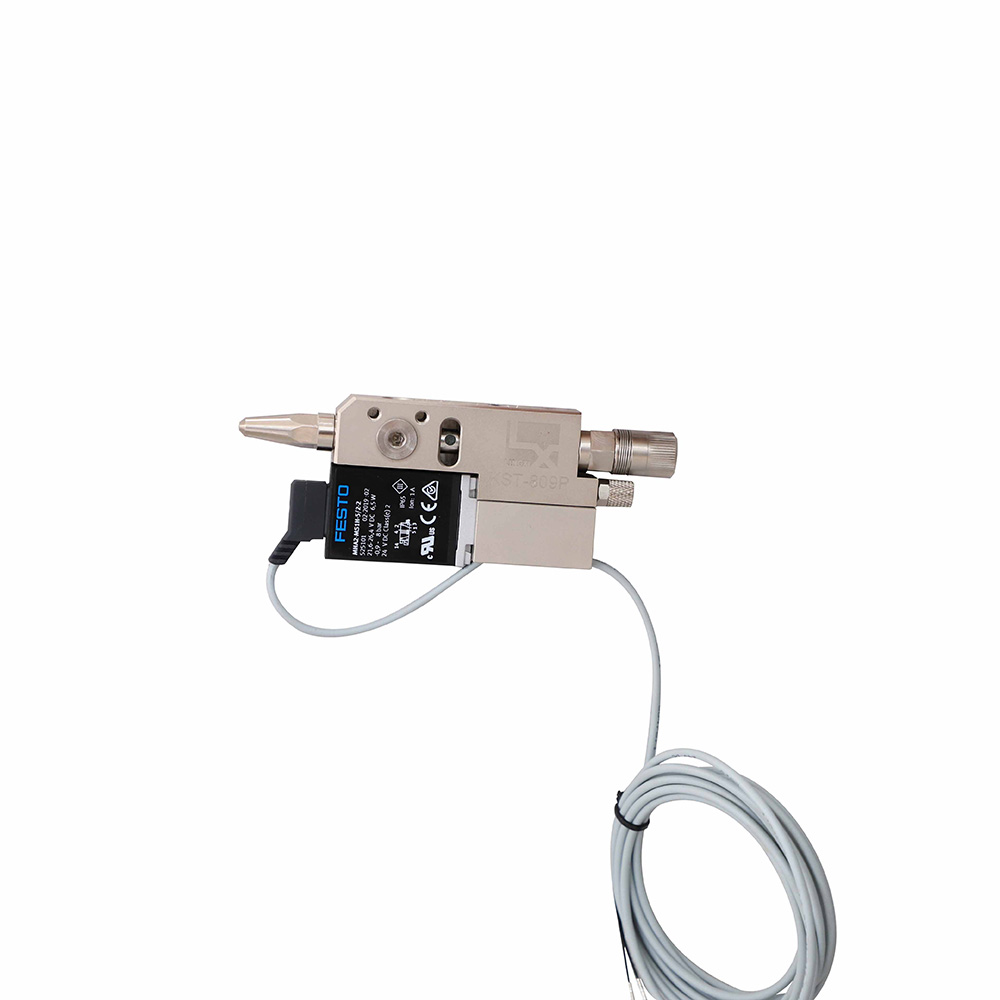

Injection valve (1)

Advantage:

1. Various sizes can be provided.

2. The raster adjustment can achieve simple control of the amount of glue (oil).

3. Can be used for adjustment hex fixing screws and for fixing buried nut.

4. The needle detection with grating adjustment can be selecte.

Max pressure	100bar
Min pressure	6bar
Frequency	200 per second
Dimension	142mm58mm15mm(Longest） 125mm58mm15mm (Shortest)

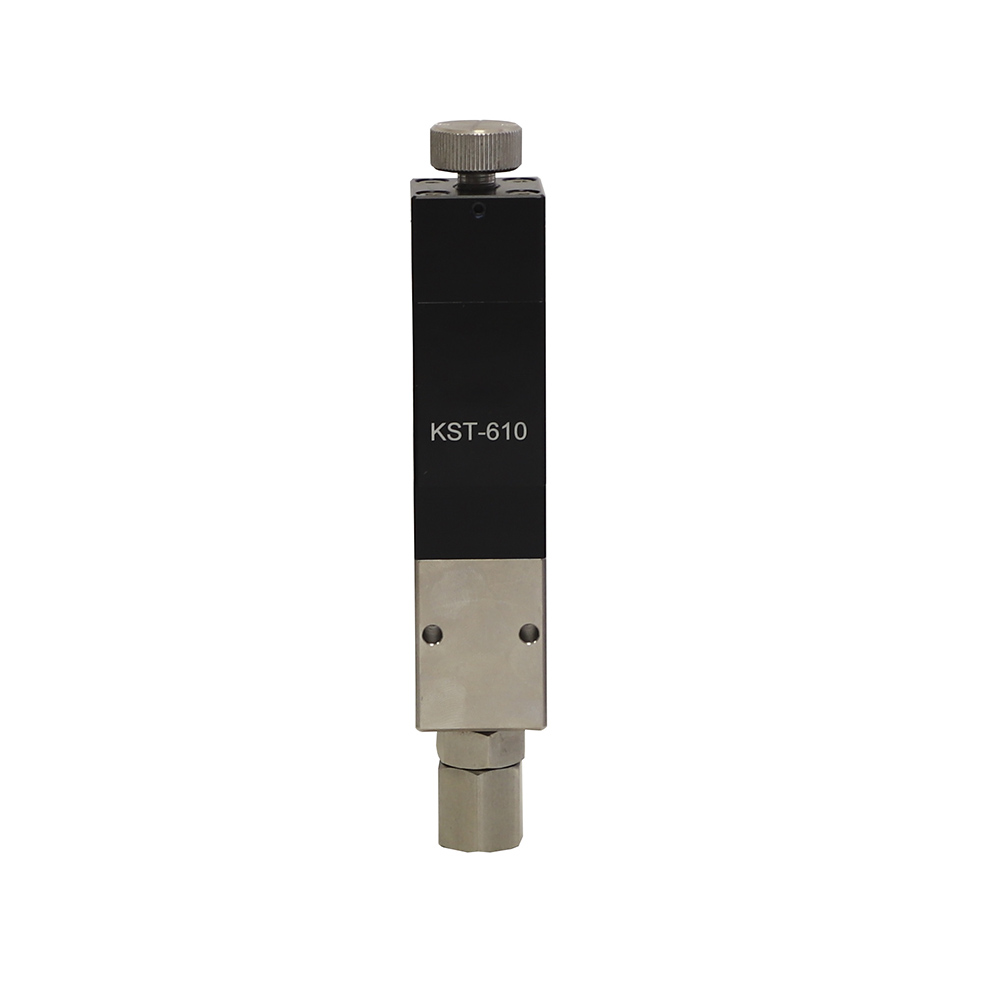

.KST-610 Pneumatic Valve (1)
.KST-610 Pneumatic Valve (2)

model	KST-610
Characteristics	Try function, trace application
Work pressure	Up to 180kg / cm2
application	Liquid oil, non-hard glue
Air pressure demand	0.4-0.6MPa
physical dimension	30mm * 30mm * 175mm
