China OEM Fork Polishing Suppliers - General flat bar sheet hardware poishing machine on mirror finish – HaoHan Detail:

Model  HH-FL01.01 HH-FL01.02 HH-FL01.03 HH-FL01.04 HH-FL01.05 HH-FL02.01 HH-FL02.02
Flat 600*600mm Flat 600*2000mm Flat 1200*1200mm Flat 600*600mm Flat 600*600mm Flat Dm600mm Flat Dm850mm
Option Economy Economy Medial Medial High Economy Economy
Voltage 380v/50Hz 380v/50Hz 380v/50Hz 380v/50Hz 380v/50Hz 380v/50Hz 380v/50Hz
Motor 11kw 11kw 15kw 11kw 18kw 12kw 14kw
Speed of Shaft 1800r/min 1800r/min 2800r/min 1800r/min 1800r/min 1800r/min 1800r/min
Consumable/wheel 600*φ250mm 600*φ250mm φ300*1200mm 600*φ250mm 600*φ250mm 600*φ250mm 600*φ250mm
Travel Distance 80mm 80mm 80mm 80mm 80mm 80mm 80mm
Warranty One(1)Year One(1)Year One(1)Year One(1)Year One(1)Year One(1)Year One(1)Year
Technical support video / online video / online video / online video / online video / online video / online video / online
Swing range of worktable  0~40mm 0~40mm 0~40mm 0~40mm 0~40mm 0~40mm 0~40mm
Total power 11.8kw 11.8kw 21.25kw 11.8kw 11.8kw 11.8kw 11.8kw
Dimension of worktable 600 * 600mm 600 * 2000mm 1200 * 1200mm 600 * 600mm 600 * 600mm Dm600mm Dm850mm
Effective max size  590*590mm 590*1990mm 590*1990mm 590*590mm 590*590mm Dm590 Dm840
Thickness workable 1~120mm 1~120mm 1~120mm 1~120mm 1~120mm 1~120mm 1~120mm
Lifting distance 200mm 200mm 300mm 200mm 200mm 200mm 200mm
Net weight 700KGS 1300KGS 1900KGS 800KGS 1100KGS 800KGS 1050KGS
Dimension 1500*1500*1700mm 4600*1500*1700mm 4000*2400*2200mm 1500*1500*1700mm 1500*1500*1700mm 1500*1500*1700mm 2100*2100*1700mm
Wax solid / liquid solid / liquid solid / liquid solid / liquid solid / liquid solid / liquid solid / liquid
Finishes mirror / light  mirror / light  mirror / light  mirror / light  mirror / light  mirror / light  mirror / light
Processing polishing / deburring polishing / deburring polishing / deburring polishing / deburring polishing / deburring polishing / deburring polishing / deburring
Material workable All All All All All All All
Processing shape sheet/pipe/tube/… sheet/pipe/tube/… sheet/pipe/tube/… sheet/pipe/tube/… sheet/pipe/tube/… sheet/pipe/tube/… sheet/pipe/tube/…
Forth/back/right/left/rotation ● /● / ● / ● / - ● /● / ● / ● / - ● /● / ● / ● / - ● /● / ● / ● / - ● /● / ● / ● / - ● /● / ● / ● / ● ● /● / ● / ● / ●
Outer housing - - - -
Dust Collector / output  - / -    - / -    - / -    - / -   ● /●  - / -    - / -
Control Pannel / Display ● / - ● / - ● / - ● / - ● /● ● / - ● / -
Waxing equipment - - - -
Vacuum system/Air pump  - / -    - / -   ● /● ● /● ● /●  - / -    - / -
OEM acceptable acceptable acceptable acceptable acceptable acceptable acceptable
Customization acceptable acceptable acceptable acceptable acceptable acceptable acceptable
MoQ 10sets 10sets 10sets 10sets 10sets 10sets 10sets
Delivery 30-60days 30-60days 30-60days 30-60days 30-60days 30-60days 30-60days
Packing wooden case wooden case wooden case wooden case wooden case wooden case wooden case

The working table of the equipment can be from 600*600~3000mm, which can meet different product specifications, and the fixture can also be customized on this basis. If the product is too small, or use a vacuum suction cup to adsorb the product on the working platform, in this case, it’s more helpful for tight fixing on table during polishing. hence, in order to be having a best approach between wheels and product for high quality achievement. our equipment has added an automatic swing function, so that the polishing wheel can be in uniform contact with the product surface to achieve a higher-precision mirror effect.

In terms of safety, we have a complete circuit design and a good supply chain as a guarantee. ABB, Schneider, and Siemens are all our regular partners.

Finally, if our products can’t meet your requirement, please contact us, as we are specialized in ingenuity. We tailor a complete solution as per your actual requirement. We have a strong R&D and designing team, professional and feasible plan is our basis for delivery of the turnkey project.

accessories (1)
accessories (3)
accessories (2)
accessories (4)


Product detail pictures:

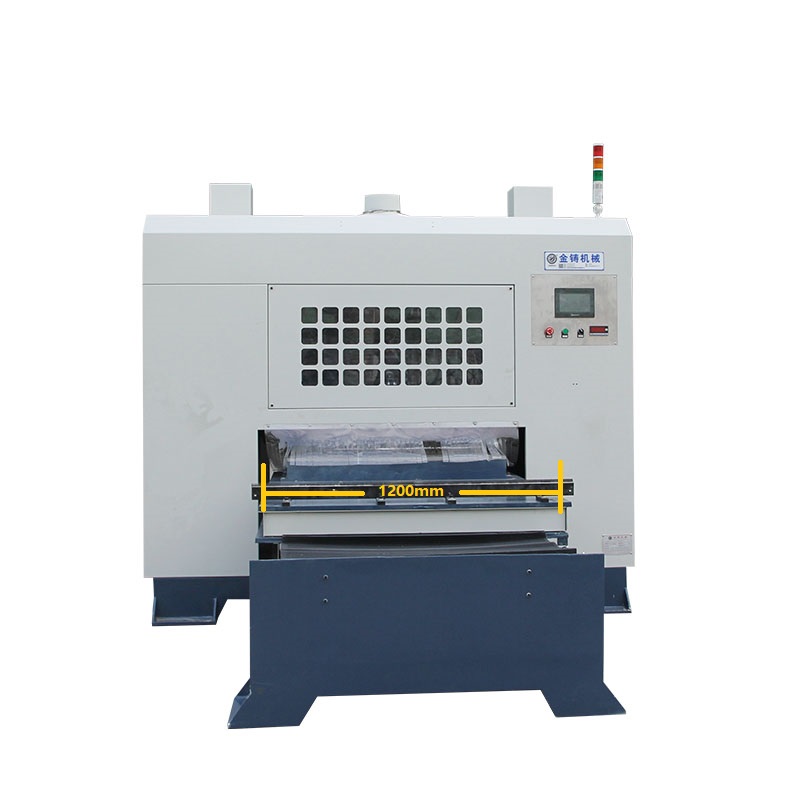

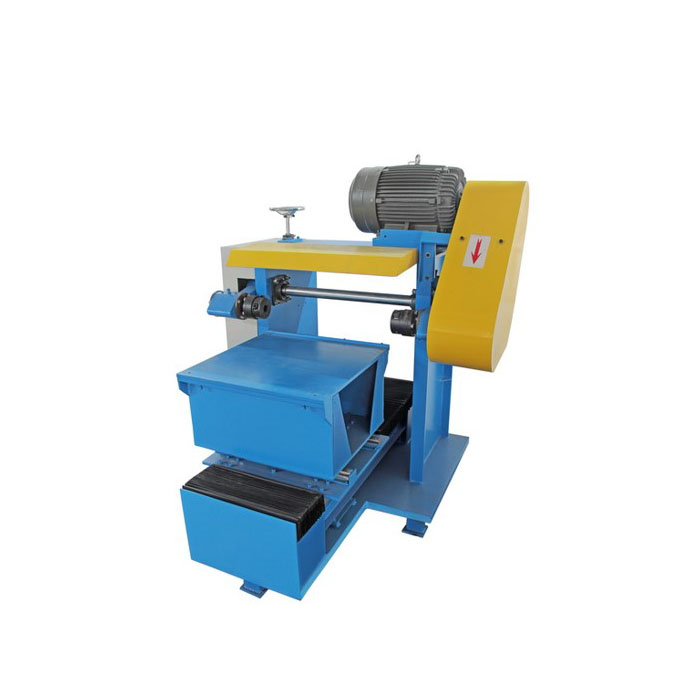

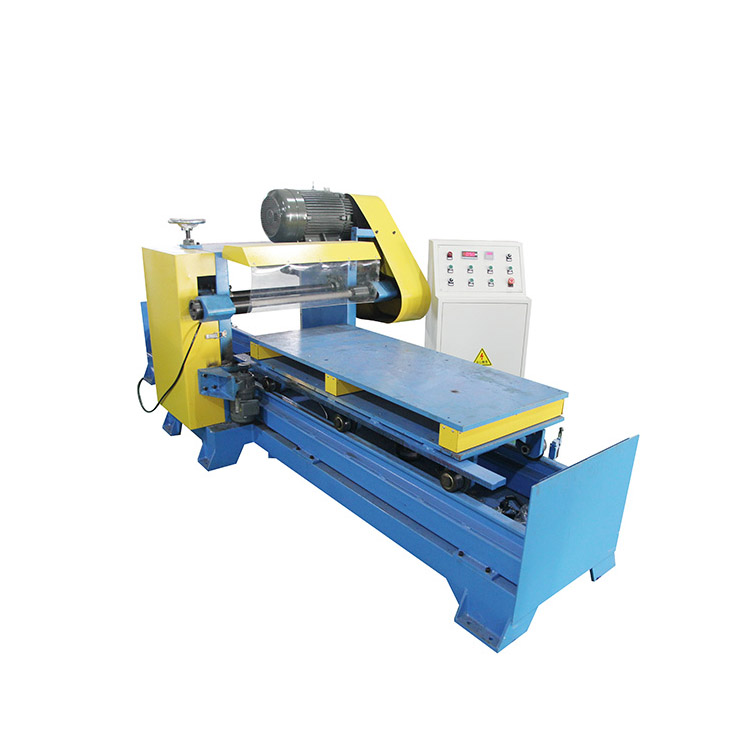

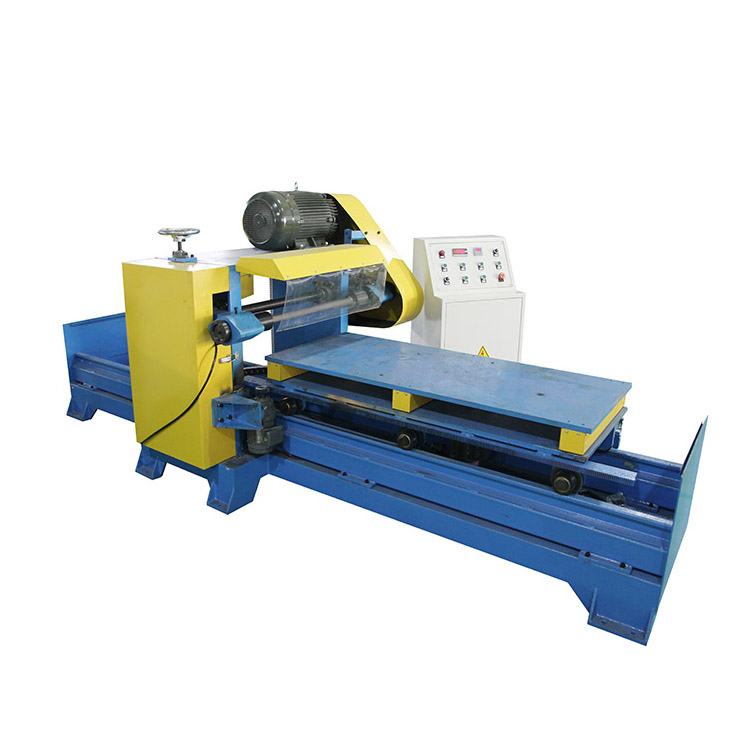

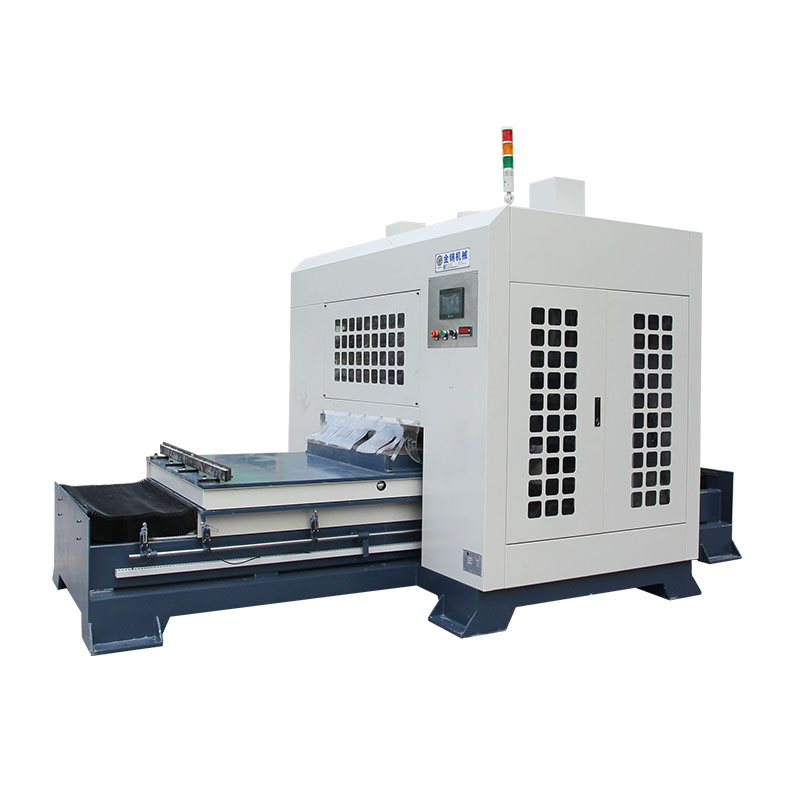

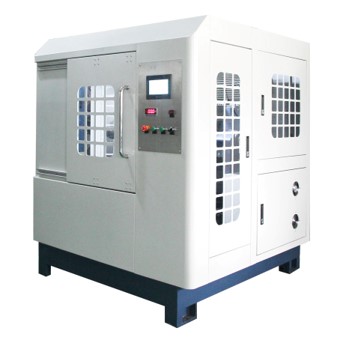

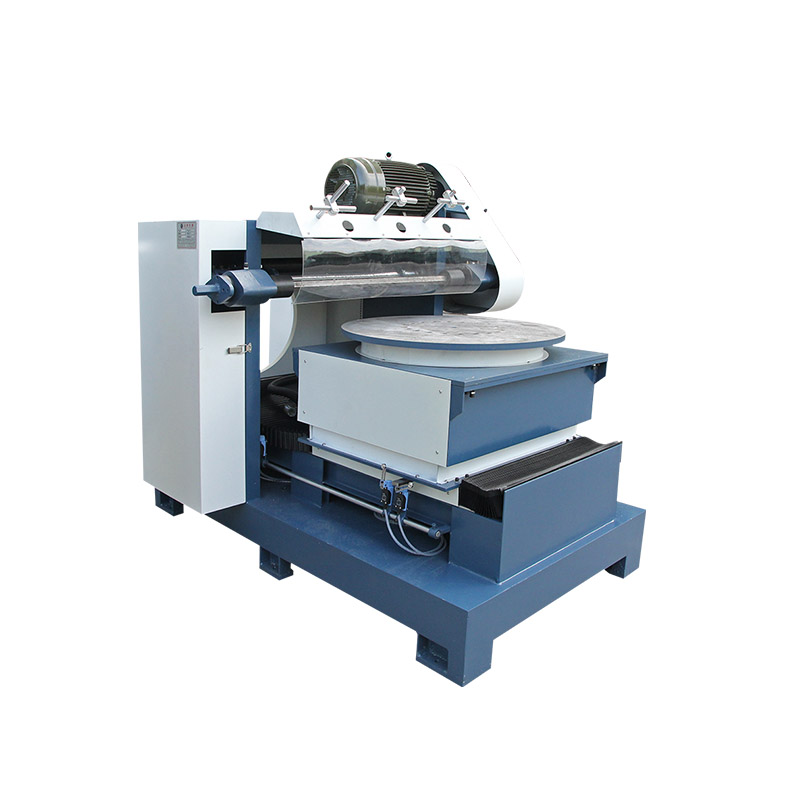

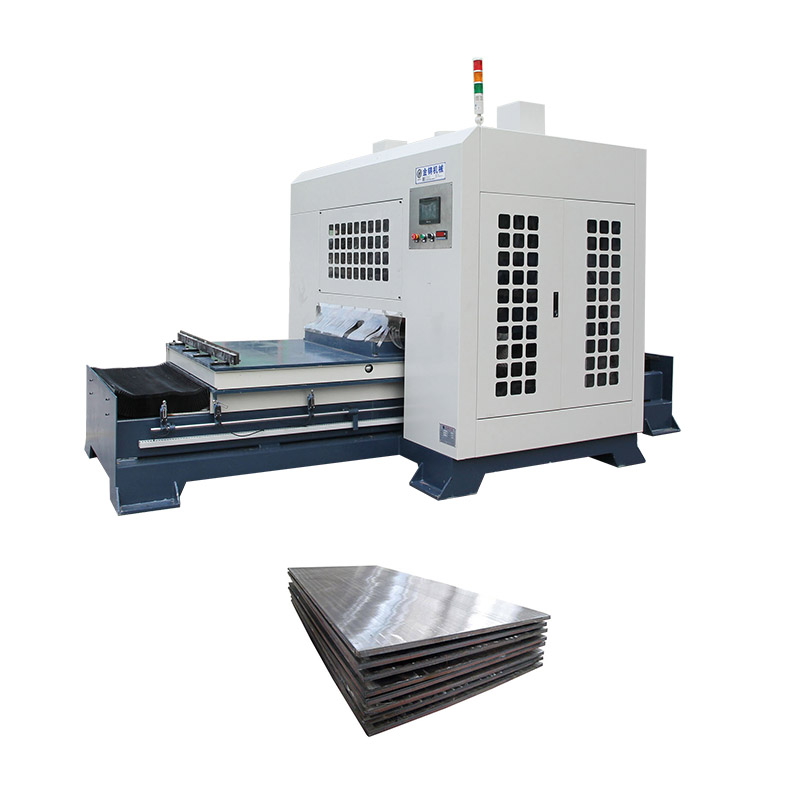

China OEM Fork Polishing Suppliers - General flat bar sheet hardware poishing machine on mirror finish – HaoHan detail pictures
