Automatic polishing machine for lamps

Short Description:

Brand: gold casting machinery
Power supply voltage: 380V-50Hz
Total power: 13kw
Main motor: 5.5kw
Work station: 1
Polishing consumables: nylon wheel, hemp wheel, cloth wheel
Processing fixture: customized products
Spindle speed: 2800r / min
Air source used: 0.55mpa
Compensation mode: automatic compensation
Equipment installation dimension: subject to the actual installation


Product Detail

Product Tags

Main purpose

The automatic polishing machine for lamps is mainly used to polish the outer arc surface of stainless steel lamps. The whole machine is fully automatic, with two groups of polishing grinding heads,
Rough polishing and mirror finish polishing of products respectively. The automatic polishing machine for lamps has the advantages of reasonable structural design, stable performance, high working efficiency, uniform and bright polishing effect, and can replace the cumbersome process of manual polishing.

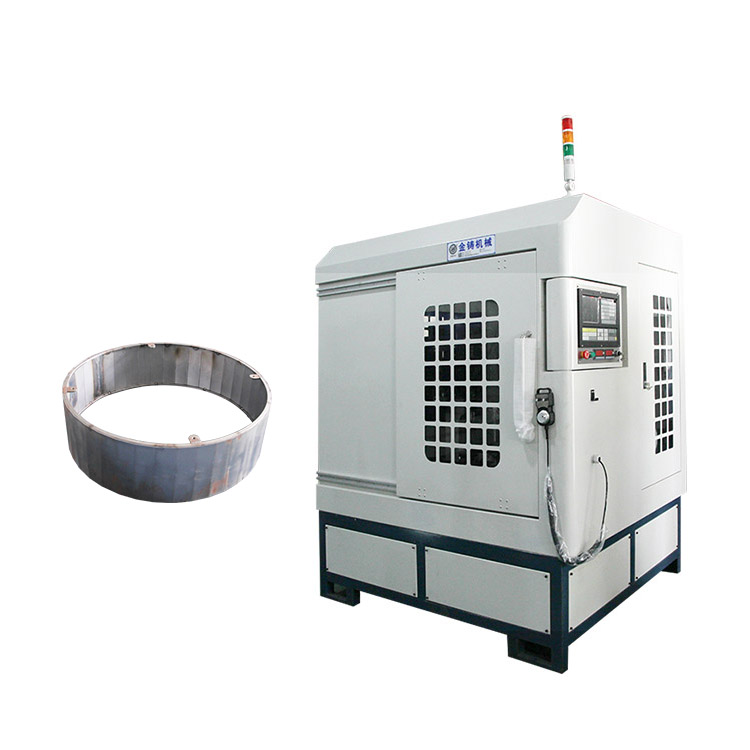

Product Picture

2.灯具自动抛光机
3.灯具自动抛光机

Key Features

Voltage:

380v/ 50Hz / Adjustable

Dimension:

As actual

Power:

As actual

Size of Consumable:

φ250*50mm / Adjustable

Main Motor:

3kw / Adjustable

Consumable Lifting

100mm / Adjustable

Intermittent:

5~20s/ Adjustable

Air Sourcing:

0.55MPa / Adjustable

Speed of Shaft:

3000r/min / Adjustable

Jobs

4 - 20 jobs / Adjustable

Waxing:

Automatic

Consumable swinging

0~40mm / Adjustable



A 16-year continuous research and development has cultivated a design team that dares to think and can be implemented. All of them are undergraduate automation majors. The excellent professional skills and the platform we provide make them feel like a duck to water in the industries and fields they are familiar with. , Full of passion and energy, it is the driving force for the sustainable development of our enterprise.

Through the unremitting efforts of the team, it has provided complete solutions for customers in more than 30 countries and regions around the world. In the process of customizing the disc machine, it has kept improving, and has obtained 102 national patents, and has achieved remarkable results. We are still on the road, self-improving, so that our company has always been an innovative leader in the polishing industry.

The application field of this disc polishing machine is very wide, covering tableware, bathroom, lamps, hardware and other special-shaped products, and our equipment can achieve the desired polishing by realizing the rotation of the table and the precise positioning of the polishing wheel. The effect, the polishing time and the number of rotations at the same time can be achieved by adjusting the parameters through the CNC panel, which is very flexible and can meet various requirements.
