A general polishing with grinding and deburring machinery for flat sheet on mirror or matt or hairline finishes

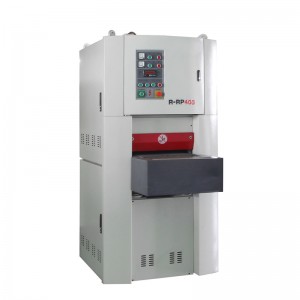

| 400mm dry grinding plate drawing machine | |||
| Voltage: | 380V50Hz | Dimension: | 1600*800*1800mm L*W*H |
| Power: | 14.12kw | Size of Consumable: | 1700*420mm |
| Main Motor: | 5.5kw | Lifting Distance of Table: | 120mm |
| Speed of Belt Line: | 20m/s | Air Sourcing: | 0.55MPa |
| Lifting Motor | 0.37kw | Range of Processing: | Width：10~400mm Thickness：0.5~110mm |
| conveying Motor | 0.75kw | conveying Belt | 2600*400mm |
| 600mm dry grinding plate drawing machine | |||
| Voltage: | 380V50Hz | Dimension: | 1800*1300*2000mm L*W*H |
| Power: | 20.34kw | Size of Consumable: | 1900*650mm |
| Main Motor: | 7.5kw | Lifting Distance of Table: | 120mm |
| Speed of Belt Line: | 17m/s | Air Sourcing: | 0.55MPa |
| Lifting Motor | 0.37kw | Range of Processing: | Width：10~600mm Thickness：0.5~110mm |
| conveying Motor | 1.1kw | conveying Belt | 3020*630mm |

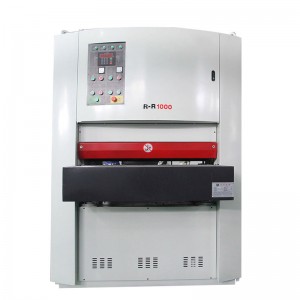

| 1000mm dry grinding plate drawing machine | |||
| Voltage: | 380V50Hz | Dimension: | 2100*1600*2100mm L*W*H |
| Power: | 28.05kw | Size of Consumable: | 2820*1000mm |
| Main Motor: | 11kw | Lifting Distance of Table: | 140mm |
| Speed of Belt Line: | 19m/s | Air Sourcing: | 0.55MPa |
| Lifting Motor | 0.55kw | Range of Processing: | Width：10~1000mm Thickness：0.5~120mm |
| conveying Motor | 1.5kw | conveying Belt | 2820*1000mm |
As our self-developed and customizable product, with 6 national patents, as well as a very flexible response to various needs, good stability and strong scalability, this product has always been favored by customers.
The application field of this product is extremely wide, including plates of various materials, metal surface or wood surface can be solid surface treatment; and according to different needs, a variety of different working modes and treatment methods can be customized, which is composed of polishing wheels and abrasive belts. To achieve rough polishing and fine polishing, special grinding wheel or abrasive belt consumables can also be installed to achieve different surface drawing effects;
In terms of design, we have improved & optimized in terms of appearance and function, including static electricity and temperature control, and adopted the most optimized solution to solve it. For the treatment that requires cooling and a smoother surface, our company has also developed a water mill series to meet the needs of different scenarios; in addition, in terms of size, the product has covered different lengths and widths of 400-3000mm, and can also be automatically transmitted by carrying It can be used for assembly line operations, and multiple devices can be connected to achieve higher surface treatment effects.
Generally, as our star product, the performance is perfect in front of us. If you have higher requirements on the processing effect, you can contact our technical support to provide solutions.
